تست MPLS با روتر Cisco

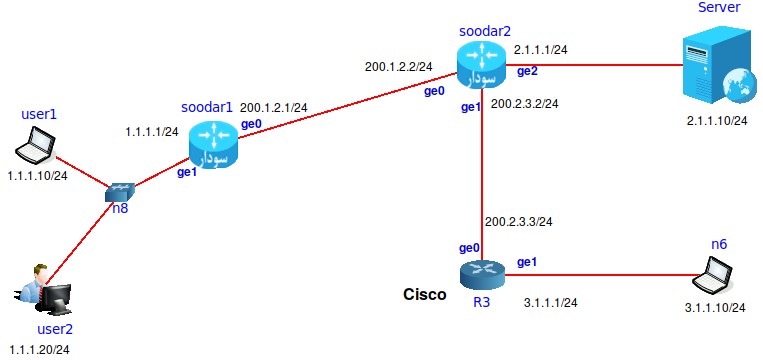

برای تست سازگار بودن روتر با روتر های سیسکو سناریویی شامل ۳ روتر که یک روتر سیسکو با دو روتر سودار در یک شبکه قرار گرفته اند . پروتکل OSPF برای مسیریابی انتخاب شده است همچنین پروتکل MPLS نیز در شبکه فعال شده است .
تنظیمات اعمال شده در روتر ها را در ادامه می بینیم (نحوه تنظیم OSPF , MPLS را می توانید در اینجا مشاهده کنید تنظیم OSPF , تنظیم MPLS) . سپس در بخش نهایی جداول مسیریابی و جدول mpls در روتر ها را مشاهده کرده و ارتباطات شبکه ها را بررسی می کنیم :
soodar1# sh run
Building configuration...
Current configuration:
log file
system update server-url https://update.soodar.ir
system update update-poll-interval 10
system update inventory-poll-interval 15
no ip forwarding
no ipv6 forwarding
hostname soodar1
enable password s
!
interface loopback0
no shutdown
ip address 222.1.1.1/32
!
interface ge0
mpls ip
no shutdown
ip address 200.1.2.1/24
ip ospf hello-interval 3
ip ospf dead-interval 10
!
interface ge1
mpls ip
no shutdown
ip address 1.1.1.1/24
ip ospf hello-interval 3
ip ospf dead-interval 10
!
router ospf
ospf router-id 222.1.1.1
redistribute kernel
redistribute connected
redistribute static
network 1.1.1.0/24 area 0
network 200.1.2.0/24 area 0
network 222.1.1.1/32 area 0
!
mpls ldp
router-id 222.1.1.1
dual-stack transport-connection prefer ipv4
dual-stack cisco-interop
neighbor 222.2.2.2 password testmpls
neighbor 222.3.3.3 password testmpls
!
address-family ipv4
discovery transport-address 222.1.1.1
!
interface ge0
!
interface ge1
!
exit-address-family
!
end
soodar2# sh run
Building configuration...
Current configuration:
log file
system update server-url https://update.soodar.ir
system update update-poll-interval 10
system update inventory-poll-interval 15
no ip forwarding
no ipv6 forwarding
hostname soodar2
enable password s
!
interface loopback0
no shutdown
ip address 222.2.2.2/32
!
interface ge0
mpls ip
no shutdown
ip address 200.1.2.2/24
ip ospf hello-interval 3
ip ospf dead-interval 10
!
interface ge1
mpls ip
no shutdown
ip address 200.2.3.2/24
ip ospf hello-interval 3
ip ospf dead-interval 10
!
interface ge2
no shutdown
ip address 2.1.1.1/24
!
router ospf
ospf router-id 222.2.2.2
redistribute kernel
redistribute connected
redistribute static
network 2.1.1.0/24 area 0
network 200.1.2.0/24 area 0
network 200.2.3.0/24 area 0
network 222.2.2.2/32 area 0
!
mpls ldp
router-id 222.2.2.2
dual-stack transport-connection prefer ipv4
dual-stack cisco-interop
neighbor 222.1.1.1 password testmpls
neighbor 222.3.3.3 password testmpls
!
address-family ipv4
discovery transport-address 222.2.2.2
!
interface ge0
!
interface ge1
!
exit-address-family
!
end
R3#sh run
Building configuration...
Current configuration : 1449 bytes
upgrade fpd auto
version 15.0
service timestamps debug datetime msec
service timestamps log datetime msec
no service password-encryption
hostname R3
boot-start-marker
boot-end-marker
no aaa new-model
ip source-route
no ip icmp rate-limit unreachable
ip cef
no ip domain lookup
no ipv6 cef
multilink bundle-name authenticated
mpls ldp neighbor 222.2.2.2 password testmpls
redundancy
ip tcp synwait-time 5
interface Loopback0
ip address 222.3.3.3 255.255.255.0
!
interface Ethernet0/0
no ip address
shutdown
duplex auto
!
interface GigabitEthernet0/0
ip address 200.2.3.3 255.255.255.0
ip ospf hello-interval 3
ip ospf dead-interval 10
duplex full
speed 1000
media-type gbic
negotiation auto
mpls ip
!
interface GigabitEthernet1/0
ip address 3.1.1.1 255.255.255.0
negotiation auto
!
router ospf 1
router-id 222.3.3.3
log-adjacency-changes
network 3.1.1.0 0.0.0.255 area 0
network 200.2.3.0 0.0.0.255 area 0
network 222.3.3.0 0.0.0.255 area 0
ip forward-protocol nd
no ip http server
no ip http secure-server
no cdp log mismatch duplex
control-plane
!
mgcp fax t38 ecm
mgcp behavior g729-variants static-pt
gatekeeper
shutdown
line con 0
exec-timeout 0 0
privilege level 15
logging synchronous
stopbits 1
line aux 0
exec-timeout 0 0
privilege level 15
logging synchronous
stopbits 1
line vty 0 4
login
end
مشاهده جداول ospf , mpls در روتر ها
soodar1
soodar1# sh ip fib
Codes: K - kernel route, C - connected, S - static, R - RIP,
O - OSPF, I - IS-IS, B - BGP, E - EIGRP, N - NHRP,
T - Table, v - VNC, V - VNC-Direct, A - Babel, D - SHARP,
F - PBR, f - OpenFabric,
> - selected route, * - FIB route, q - queued route, r - rejected route
C>* 1.1.1.0/24 is directly connected, soo1, 00:29:19
O>* 2.1.1.0/24 [110/20000] via 200.1.2.2, soo0, label implicit-null, 00:44:18
O>* 3.1.1.0/24 [110/20001] via 200.1.2.2, soo0, label 18, 00:20:15
C>* 200.1.2.0/24 is directly connected, soo0, 00:44:33
O>* 200.2.3.0/24 [110/20000] via 200.1.2.2, soo0, label implicit-null, 00:44:18
C>* 222.1.1.1/32 is directly connected, loopback0, 00:44:33
O>* 222.2.2.2/32 [110/20000] via 200.1.2.2, soo0, label implicit-null, 00:44:18
O>* 222.3.3.3/32 [110/20001] via 200.1.2.2, soo0, label 20, 00:20:15
soodar1# sh mpls ldp binding
---------------------------------------------------
AF Destination Nexthop Local Label Remote Label In Use
ipv4 1.1.1.0/24 222.2.2.2 imp-null 19 no
ipv4 2.1.1.0/24 222.2.2.2 16 imp-null yes
ipv4 3.1.1.0/24 222.2.2.2 19 18 yes
ipv4 111.1.1.0/24 222.2.2.2 imp-null imp-null no
ipv4 200.1.2.0/24 222.2.2.2 imp-null imp-null no
ipv4 200.2.3.0/24 222.2.2.2 17 imp-null yes
ipv4 222.1.1.1/32 222.2.2.2 imp-null 17 no
ipv4 222.2.2.2/32 222.2.2.2 18 imp-null yes
ipv4 222.3.3.3/32 222.2.2.2 20 20 yes
soodar2
soodar2# sh ip fib
Codes: K - kernel route, C - connected, S - static, R - RIP,
O - OSPF, I - IS-IS, B - BGP, E - EIGRP, N - NHRP,
T - Table, v - VNC, V - VNC-Direct, A - Babel, D - SHARP,
F - PBR, f - OpenFabric,
> - selected route, * - FIB route, q - queued route, r - rejected route
O>* 1.1.1.0/24 [110/20000] via 200.1.2.1, soo0, label implicit-null, 00:30:40
C>* 2.1.1.0/24 is directly connected, soo2, 00:45:54
O>* 3.1.1.0/24 [110/10001] via 200.2.3.3, soo1, label implicit-null, 00:21:36
C>* 111.1.1.0/24 is directly connected, ctrl0, 00:45:55
C>* 200.1.2.0/24 is directly connected, soo0, 00:45:54
C>* 200.2.3.0/24 is directly connected, soo1, 00:45:54
O>* 222.1.1.1/32 [110/20000] via 200.1.2.1, soo0, label implicit-null, 00:45:31
C>* 222.2.2.2/32 is directly connected, loopback0, 00:45:54
O>* 222.3.3.3/32 [110/10001] via 200.2.3.3, soo1, 00:21:36
soodar2# sh mpls ldp binding
AF Destination Nexthop Local Label Remote Label In Use
ipv4 1.1.1.0/24 222.1.1.1 19 imp-null yes
ipv4 1.1.1.0/24 222.3.3.3 19 19 yes
ipv4 2.1.1.0/24 222.1.1.1 imp-null 16 no
ipv4 2.1.1.0/24 222.3.3.3 imp-null 18 no
ipv4 3.1.1.0/24 222.1.1.1 18 19 yes
ipv4 3.1.1.0/24 222.3.3.3 18 imp-null yes
ipv4 111.1.1.0/24 222.1.1.1 imp-null imp-null no
ipv4 111.1.1.0/24 222.3.3.3 imp-null 21 no
ipv4 200.1.2.0/24 222.1.1.1 imp-null imp-null no
ipv4 200.1.2.0/24 222.3.3.3 imp-null 20 no
ipv4 200.2.3.0/24 222.1.1.1 imp-null 17 no
ipv4 200.2.3.0/24 222.3.3.3 imp-null imp-null no
ipv4 222.1.1.1/32 222.1.1.1 17 imp-null yes
ipv4 222.1.1.1/32 222.3.3.3 17 17 yes
ipv4 222.2.2.2/32 222.1.1.1 imp-null 18 no
ipv4 222.2.2.2/32 222.3.3.3 imp-null 16 no
ipv4 222.3.3.0/24 222.3.3.3 - imp-null yes
ipv4 222.3.3.3/32 222.1.1.1 20 20 yes
R3
R3#sh ip route
Codes: L - local, C - connected, S - static, R - RIP, M - mobile, B - BGP
D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
E1 - OSPF external type 1, E2 - OSPF external type 2
i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
ia - IS-IS inter area, * - candidate default, U - per-user static route
o - ODR, P - periodic downloaded static route, + - replicated route
Gateway of last resort is not set
1.0.0.0/24 is subnetted, 1 subnets
O 1.1.1.0 [110/20001] via 200.2.3.2, 00:19:07, GigabitEthernet0/0
2.0.0.0/24 is subnetted, 1 subnets
O 2.1.1.0 [110/10001] via 200.2.3.2, 00:19:07, GigabitEthernet0/0
3.0.0.0/8 is variably subnetted, 2 subnets, 2 masks
C 3.1.1.0/24 is directly connected, GigabitEthernet1/0
L 3.1.1.1/32 is directly connected, GigabitEthernet1/0
111.0.0.0/24 is subnetted, 1 subnets
O E2 111.1.1.0 [110/20] via 200.2.3.2, 00:19:07, GigabitEthernet0/0
O 200.1.2.0/24 [110/10001] via 200.2.3.2, 00:19:07, GigabitEthernet0/0
200.2.3.0/24 is variably subnetted, 2 subnets, 2 masks
C 200.2.3.0/24 is directly connected, GigabitEthernet0/0
L 200.2.3.3/32 is directly connected, GigabitEthernet0/0
222.1.1.0/32 is subnetted, 1 subnets
O 222.1.1.1 [110/20001] via 200.2.3.2, 00:19:09, GigabitEthernet0/0
222.2.2.0/32 is subnetted, 1 subnets
O 222.2.2.2 [110/10001] via 200.2.3.2, 00:19:09, GigabitEthernet0/0
222.3.3.0/24 is variably subnetted, 2 subnets, 2 masks
C 222.3.3.0/24 is directly connected, Loopback0
L 222.3.3.3/32 is directly connected, Loopback0
R3#sh mpls ldp bindings
lib entry: 1.1.1.0/24, rev 14
local binding: label: 19
remote binding: lsr: 222.2.2.2:0, label: 19
lib entry: 2.1.1.0/24, rev 12
local binding: label: 18
remote binding: lsr: 222.2.2.2:0, label: imp-null
lib entry: 3.1.1.0/24, rev 6
local binding: label: imp-null
remote binding: lsr: 222.2.2.2:0, label: 18
lib entry: 111.1.1.0/24, rev 18
local binding: label: 21
remote binding: lsr: 222.2.2.2:0, label: imp-null
lib entry: 200.1.2.0/24, rev 16
local binding: label: 20
remote binding: lsr: 222.2.2.2:0, label: imp-null
lib entry: 200.2.3.0/24, rev 4
local binding: label: imp-null
remote binding: lsr: 222.2.2.2:0, label: imp-null
lib entry: 222.1.1.1/32, rev 10
local binding: label: 17
remote binding: lsr: 222.2.2.2:0, label: 17
lib entry: 222.2.2.2/32, rev 8
local binding: label: 16
remote binding: lsr: 222.2.2.2:0, label: imp-null
lib entry: 222.3.3.0/24, rev 2
local binding: label: imp-null
lib entry: 222.3.3.3/32, rev 19
remote binding: lsr: 222.2.2.2:0, label: 20
بررسی عملکرد
ارتباط شبکه های 1.1.1.0 , 2.1.1.0 , 3.1.1.0 برقرار شده است و روتر سودار با روتر سیسکو با پروتکل OSPF ارتباط گرفته است . جدول مسیریابی روتر ها به درستی ایجاد شده است .
ارتباط با روتر سیسکو با استفاده از پروتکل mpls نیز میسر می باشد و بسته ها در مسیر هایی که می باید با label و پروتکل mpls انتقال می یابند . جداول mpls نیز به درستی تشکیل شده اند .
