تونل GRE بین سودار و cisco

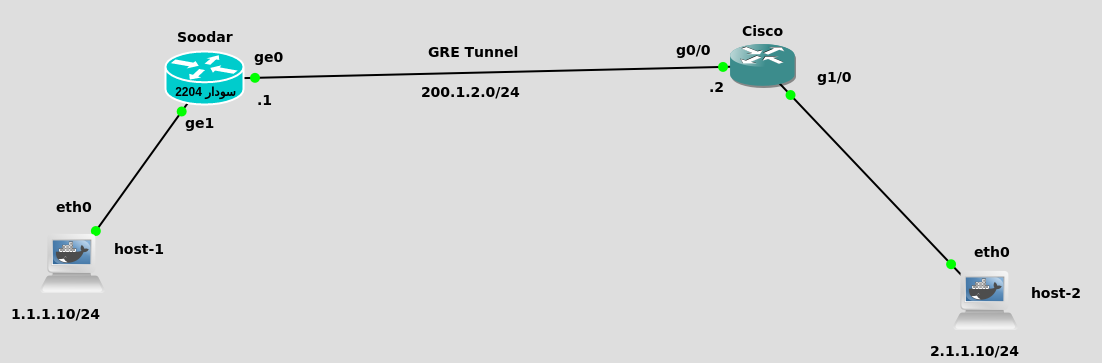

soodar-cisco-gre

تنظیمات در سودار

hostname soodar
no ipv6 forwarding
no zebra nexthop kernel enable
security passwords min-length 8
log syslog errors
log monitor
no banner motd
!
no ntp
!
ip route 2.1.1.0/24 tunnel10
!
interface lo
 no ip address
!
interface tunnel10
 tunnel source 200.1.2.1
 tunnel destination 200.1.2.2
 no shutdown
 ip address 10.1.2.1/24
exit
!
interface ge0
 no shutdown
 ip address 200.1.2.1/24
exit
!
interface ge1
 no shutdown
 ip address 1.1.1.1/24
exit
!
end

تنظیمات در روتر cisco

interface Tunnel200
 ip address 10.1.2.2 255.255.255.0
 tunnel source 200.1.2.2
 tunnel destination 200.1.2.1
 !
!
interface Ethernet0/0
 no ip address
 shutdown
 duplex auto
 !
!
interface GigabitEthernet0/0
 ip address 200.1.2.2 255.255.255.0
 duplex full
 speed 1000
 media-type gbic
 negotiation auto
 !
!
interface GigabitEthernet1/0
 ip address 2.1.1.1 255.255.255.0
 negotiation auto
 !
!
ip route 1.1.1.0 255.255.255.0 Tunnel200
